GPS/GPRS/GSM Shield V3.0 (Arduino Compatible)

sim dfrobot 1sim dfrobot

Harga: Rp 1.065.000,-

SMS/WhatsApp: 0818 024 140 34



Specification
  • Power supply: 6-12v
  • Low power consumption (100mA@7v – GSM mode)
  • Quad-Band 850/900/18001900MHz
  • GPRS multi-slot class 10
  • GPRS mobile station class B
  • Compliant to GSM phase 2/2+
  • Class 4 (2 W @ 850/900 MHz)
  • Class 1 (1 W @ 1800/1900MHz)
  • Control via AT commands(GSM07.07 ,07.05 and SIMCOM enhanced AT Commands)
  • Support GPS technology for satellite navigation
  • Embeded high-gain SMD antennas for GPS & GSM
  • Directly support 4*4 button pad
  • USB/Arduino control switch
  • Programmable switch for Arduino
  • LED indicators for power supply, network states and working status
  • Board Surface:Immersion Gold
  • Switches:
    • S1 — Programming mode / Communication mode
    • S2 — Controlling interface: USB / Arduino
  • Interfaces:
    • Embedded SIM card holder
    • Speaker & Mic Jack socket
  • Size: 81x70mm
  • Specifications for SMS via GSM / GPRS
    • Point-to-point MO and MT
    • SMS cell broadcast
    • Text and PDU mode
  • Specification for GPS
    • Receiver 42 channels, GPS L1 C/A code, High-performance STE engine
    • Sensitivity:
      • Tracking: -160 dBm
      • Cold starts: -143 dBm
    • Time-To-First-Fix:
      • Cold starts: 30s (typ.)
      • Hot starts: 1s (typ.)
    • Accuracy:Horizontal position: <2.5m CEP
    • Power consumption (GSM engine in idle mode):Acquisition 77mA,Tracking 76mA



RASBERRY Pi Model B 512M E14 UK

raspberry pi 1

raspberry pi

Harga: Rp 620.000,-

Spesifikasi
* Prosesor ARM 11 (700 MHz ARM11 ARM1176JZF-S core) (included)
* Sumber daya / power bisa menggunakan port mini usb dengan besar daya maximal 5 V /  0,7A   8  (adaptor BB atau Tab) disarankan 5v / 1A – 2A supaya lebih stabil (Not included)
* Storage SDHC dan MicroSD + Adaptor minimal 2G class 4 (included)
* satu port RCA untuk dihubungkan ke TV (included)
* satu port HDMI (included)
* dua port USB (included)
* satu port RJ45 (included)
* mendukung General Purpose Input/Output (GPIO) pins , Universal asynchronous receiver/transmitter  (UART) (included)
* satu port audio TRS connector | 3.5 mm (included)

DS1307-DIP

DS1307 DIP

Harga: Rp 5.000,-

Serial Real Time Clock (RTC).
Spesifikasi teknis:
– DC Power Supply : 5 Volt
– Nonvolatile RAM : 56 Byte
– Interface : I2C
– Programmable square-wave output signal
– Automatic Power fail detect and switch Circuitry
– Kemasan : DIP-8

I2C RTC DS1307 AT24C32 RTC module

DS1307 MODULE 1

DS1307 back

Harga: Rp 37.500,-

  • I2C interface
  • DS1307 based RTC with LIR2032 battery (Battery included)
  • Backup by AT24C32 32Kbit
  • DS1307,AT24C32 can work singleness
  • Dimention: 28x25x8.4mm
  • Weight:6.3g(include Battery)

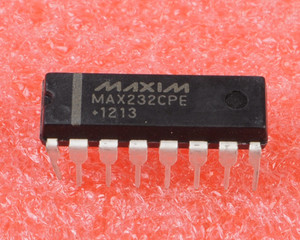

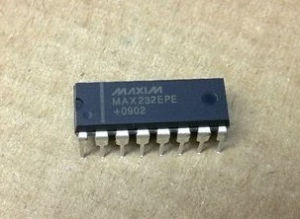

MAX232CPE-PDIP

Harga: Rp 5.000,-

SMS/WA: 0818 024 14034

Dual Line Driver Transceiver untuk komunikasi RS-232 atau V.28.
Spesifikasi :
– Catu daya : +5V DC
– Antarmuka input : Data In
– Jumlah input : 2
– Antarmuka output : Data Out
– Jumlah output : 2
– Fitur half duplex / full duplex : Full Duplex Support
– Kecepatan data : 116 Kbit per second
– Kemasan : DIP-16

L293D DIP-16

Harga: Rp. 12.500,-
SMS/WA: 0818 024 14034

Push-pull Four Channel drivers. Chip ini cocok digunakan sebagai driver motor .
Spesifikasi Teknis:
– Supply Voltage (Max) = 36 Volt
– Logic Supply Voltage (Min) = 4.5 Volt
– Logic Supply Voltage (Max) = 36 Volt
– Current Output = 2 A
– Power Dissipation = 5 Watt
– PDIP-16 Package

L298N ZIP-15

Harga: Rp 28.500,-
SMS/WA: 0818 024 140 34

Dual full-bridge driver.
Spesifikasi:
– Tegangan operasi hingga 46 V.
– Total arus DC hingga 4 A.
– Over temperature protection.
– Low saturation volatage.
– Package: 15-pin Multiwatt Vert.

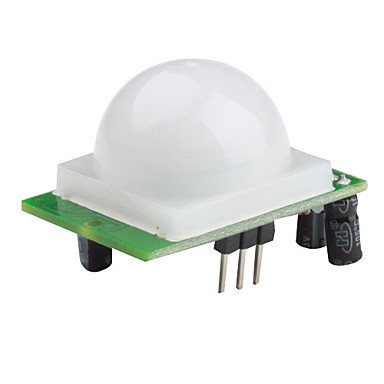

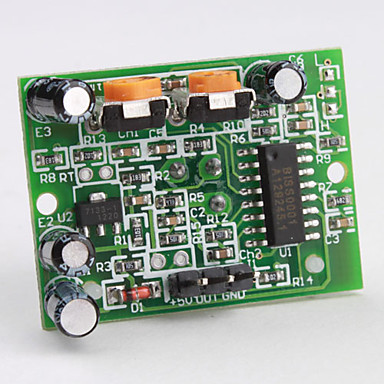

HC-SR501

Harga: Rp 25.000,-
SMS/WA: 0818 024 140 34

Spesifikasi:
Vin: 5vdc
Arus: 1A
Radius: 180 derajat. 5 meter
Output: Digital TTL
Memiliki setting sensitivitas
Memiliki setting time delay

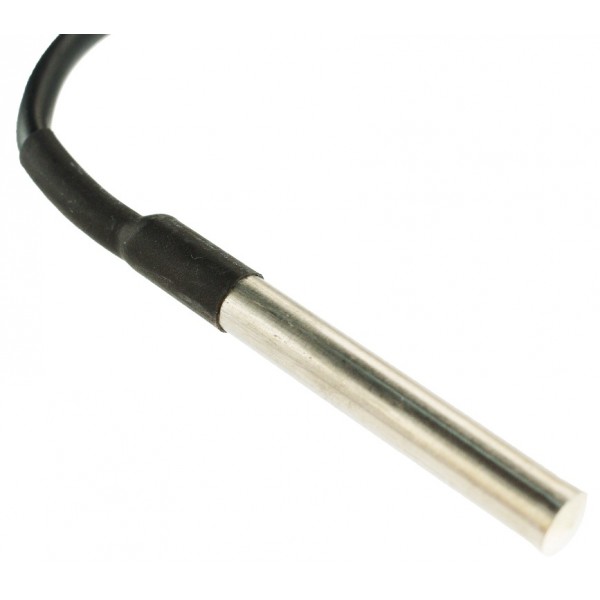

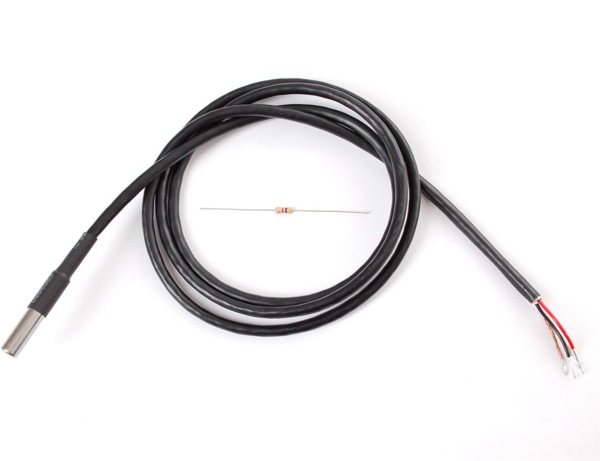

Sensor Suhu DS18B20 Tahan Air/Waterproof

Harga: Rp 35.500,-
SMS/WA: 0818 024 140 34

Spesifikasi
  • Usable with 3.0V to 5.5V power/data
  • ±0.5°C Accuracy from -10°C to +85°C
  • Usable temperature range: -55 to 125°C (-67°F to +257°F)
  • 9 to 12 bit selectable resolution
  • Uses 1-Wire interface- requires only one digital pin for communication
  • Unique 64 bit ID burned into chip
  • Multiple sensors can share one pin
  • Temperature-limit alarm system
  • Query time is less than 750ms
  • 3 wires interface:
  • Red wire  – VCC
  • Black wire – GND
  • Yellow wire – DATA
  • Stainless steel tube 6mm diameter by 35mm long
  • Cable diameter: 4mm
  • Length: 90cm

KATALOG HARGA

katalog produk

katalog produk

ARDUINO MEGA 2560

unomega1

Harga= Rp 300.000,-

http://produk-inovatif.com/shop/arduino/arduino-mega-2560/

Arduino Uno R3

uno R3

Harga= Rp. 200.000,-

http://produk-inovatif.com/shop/arduino/arduino-uno-r3/

ATMEGA8535

atmega8535-1

Harga= Rp 40.000,-/pcs

http://produk-inovatif.com/shop/ic/atmega8535/

Jual IC PL-2303HX

pl2303HX

* IC USB to Serial, untuk membuat sistem konverter dari USB to Serial

* Harga Rp. 25.000,- (nego)

* Stok = 56 pcs

hubungi=

roohmadi [at] yahoo.com

0818 024 140 34

datahseet.

http://produk-inovatif.com/shop/ic/komponen-elektronik/
